AXP60 Copper Pro: Kupferkühler mit Heatpipes und 60-mm-Lüfter

AXP60 Copper Pro

Copper heatsink with 210 g of mass and a 60 mm fan for the Bitaxe Gamma and Nerdaxe Gaia

Item no.: 82011 · Manufacturer: Thermalright

  • 210 g of solid copper with two heatpipes
  • Active 60 mm fan instead of the 40 mm standard
  • For the Bitaxe Gamma and Nerdaxe Gaia
  • Headroom for sustained load and overclocking
5,0 · 21 Reviews
€59.00 incl. VAT

plus shipping · −5% with Bitcoin: €56.05

In stock · ships within 24 h

Free shipping from 200 € Ships within 24 h 14-day right of withdrawal

Product information

AXP60 Copper Pro: copper cooling with headroom for the Bitaxe Gamma and Nerdaxe Gaia

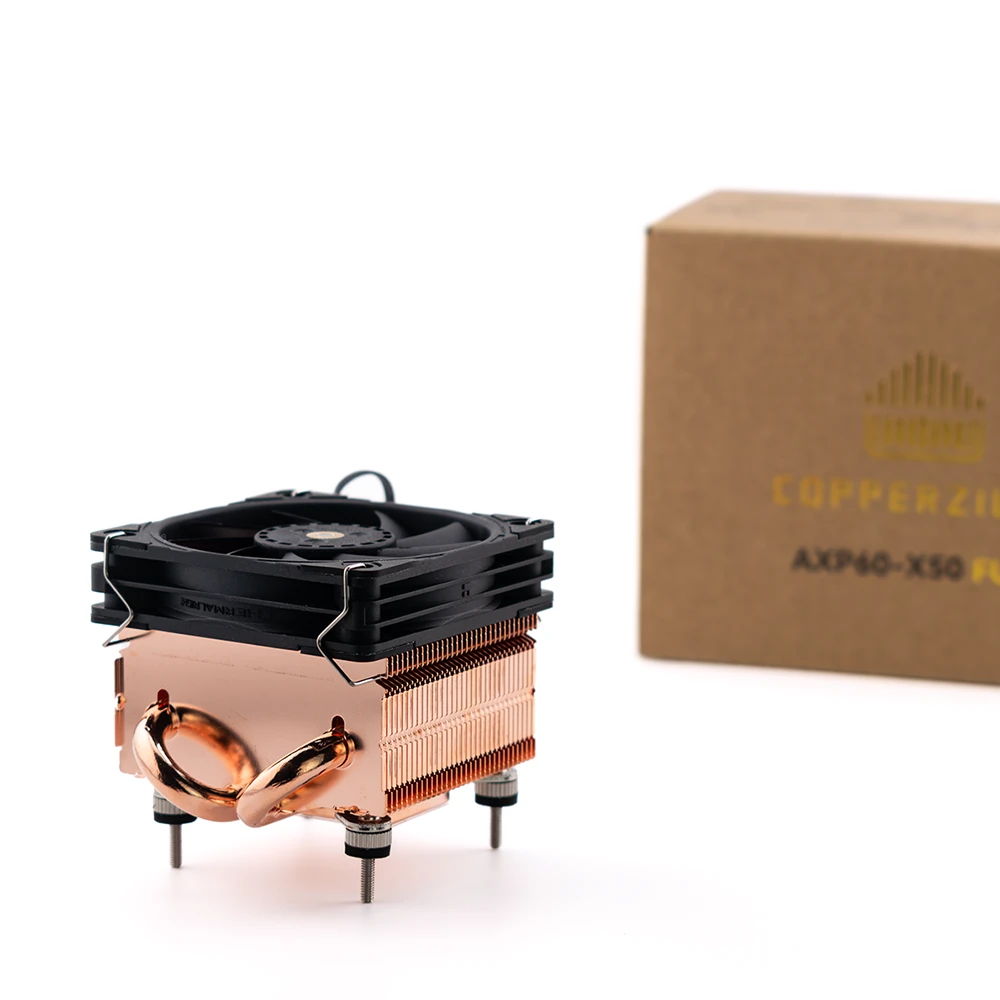

The AXP60 Copper Pro is the heatsink for everyone whose Bitaxe Gamma or Nerdaxe Gaia leaves too little room above the temperature limit with its stock cooling. On the ASIC sit 210 g of solid copper, two heatpipes pull the heat out of the contact surface into the fin stack, and a 60 mm fan pushes it out.

Copper takes up heat faster than aluminium and buffers load peaks instead of passing them straight to the temperature readout. The board runs more evenly, and you have room to raise frequency and voltage.

Why the AXP60 is more than a bigger heatsink

  • Mass instead of fan speed: 210 g of copper absorb heat before the fan has to spin up at all.
  • Two heatpipes: they pull the heat out of the small contact area and put the whole fin stack to use.
  • 60 mm instead of 40 mm: the larger fan moves the same volume of air at a lower speed.
  • Headroom for sustained load: if you mine around the clock, you work with distance from the temperature limit instead of right at it.

Compatibility: Bitaxe Gamma and Nerdaxe Gaia

The AXP60 Copper Pro fits the Bitaxe Gamma and the Nerdaxe Gaia. On the Bitaxe Gamma Copper Pro and the Nerdaxe Gaia Copper Pro it comes fitted from the factory. It is not intended for:

  • older Bitaxe models with a different layout and mounting pattern
  • the Nerdaxe Gamma
  • the larger boards of the NerdQaxe++ and NerdOctaxe – the AXP90 Copper Pro is made for those

Fitting: swap, seat, plug in the fan

Take the old heatsink off, clean the contact surface, seat the AXP60, plug in the 60 mm fan. Nothing is soldered or drilled. Customer feedback does show that one spot is fiddly during alignment – take a few quiet minutes for it. How the miner starts up again afterwards is covered in the Bitaxe setup guide and the Nerdaxe setup guide.

Who the AXP60 Copper Pro is for

For everyone who does not run their Bitaxe Gamma or Nerdaxe Gaia at factory settings but adjusts frequency and voltage – and for anyone who wants permanent headroom in a warm room.

It is less of a fit if your miner should stay compact and discreet on a desk: the AXP60 is considerably larger than the stock cooling. If that is too much, an adjusted fan curve is often enough on its own.

What you need to fit it

Delivered are the heatsink, the 60 mm fan and, depending on the set variant, the mounting hardware. Thermal paste is not listed as a separate item – have some ready if you are out. Beyond that you only need a spot with some airflow.

Accessories and sensible upgrades

Ready for more cooling headroom on your miner?

If your Bitaxe Gamma or Nerdaxe Gaia works at the temperature limit or you need room above it when overclocking, the AXP60 Copper Pro is the most direct answer: more copper, more surface, more airflow.

Frequently asked questions about the AXP60 Copper Pro

Does the AXP60 Copper Pro fit the Bitaxe Gamma 601?

Yes. The Bitaxe Gamma is the main target for this heatsink – 601 is the board revision of the Gamma, so it is the same device.

Does the heatsink fit the Nerdaxe Gaia?

Yes. On the Nerdaxe Gaia Copper Pro it comes fitted from the factory, and you can retrofit it on the Nerdaxe Gaia.

Does the AXP60 fit the Nerdaxe Gamma?

No. The AXP60 fits the Nerdaxe Gaia, not the Nerdaxe Gamma. More cooling surface for the Nerdaxe Gamma comes from the ICE Tower Low Profile kit.

Which boards does the AXP60 not fit?

The Nerdaxe Gamma, older Bitaxe boards with a different layout, and the larger boards of the NerdQaxe++ and NerdOctaxe. For the NerdQaxe++ and NerdOctaxe there is the AXP90 Copper Pro, or you go straight for the factory-cooled NerdQaxe Copper Pro.

Is a fan included or do I need my own?

A 60 mm fan is included, along with the heatsink and, depending on the set variant, the mounting hardware. So you do not have to buy a fan separately.

How much copper is in the heatsink?

210 g of solid copper, combined with two heatpipes. That is a multiple of the mass of a stock heatsink and the reason for the additional thermal headroom.

Will my miner get quieter with it?

Usually yes. More cooling surface and a 60 mm fan mean a lower speed is enough for the same load. We do not quote fixed dB figures, because location, fan curve and settings change the result significantly.

Do I need the AXP60 if I do not overclock?

No. At factory settings the Bitaxe Gamma and Nerdaxe Gaia get along fine with the stock cooling. The upgrade becomes useful when you overclock, run the miner in a warm room or want permanently more distance from the temperature limit.

Do I need tools or soldering skills for the swap?

No. The old heatsink comes off, the AXP60 goes on and the fan gets plugged in – no soldering and no special tools required.

Does the miner stay as compact as before?

No. The AXP60 is considerably larger than the stock cooling. If the miner has to fit into a tight niche or a closed case, check the space first.

What is the difference to the AXP90 Copper Pro?

The AXP90 Copper Pro is the large version for the NerdQaxe++ and NerdOctaxe: four heatpipes, a 12 V 92 mm fan, 520 g with fan. The AXP60 is built for the Bitaxe Gamma and Nerdaxe Gaia, whose fan header supplies 5 V.

What is the difference to the ICE Tower Low Profile kit?

The AXP60 relies on copper mass with two heatpipes and fits the Bitaxe Gamma and Nerdaxe Gaia. The ICE Tower Low Profile kit works with four heatpipes, comes as a complete set with bracket, thermal paste and Y-splitter, and fits Bitaxe as well as Nerdaxe boards.

What is the difference to the Bitaxe Gamma Copper Pro?

The AXP60 Copper Pro is only the heatsink. The Bitaxe Gamma Copper Pro is a complete miner: a Bitaxe Gamma with exactly this heatsink fitted at the factory.

Does the AXP60 cool the voltage regulators too?

No, it sits on the ASIC. For the other hotspots on the board there are the small copper heatsinks, which can be combined with the AXP60.

Why buy from Bitaxe.de?

Free shipping from 200 €

Free shipping to almost every EU country from 200 €, shipping to the EU and Switzerland with UPS and a tracking link. Items in stock leave within 24 hours, with no customs surprises inside the EU.

Truly open source

Bitaxe, Nerdaxe, NerdQaxe & co. are open hardware running open firmware (AxeOS or NerdOS): you set pool, clock and voltage yourself. No cloud account, no vendor lock-in, no black box.

CE, warranty & returns

Every product carries the CE marking. Plus statutory warranty and a 14-day right of withdrawal for a safe order. If something is not right, we find a solution with you, person to person.

Direct support

Questions about setup, pool, firmware or your order? By email or Telegram you get help from someone who runs these devices themselves, in English or German, beginners welcome.

Customer reviews

5.0 / 5 · 21 reviews from customers who bought this product from us.

All reviews
16.11.2026
Alles passt
Lmf Verified purchase
08.10.2026
Commandé au départ pour mon Nerdaxe Gamma… sauf qu'il ne va pas dessus, j'aurais dû vérifier la compatibilité avant. Il a donc atterri sur mon Bitaxe Gamma, et quel bloc ! Un vrai lingot de 210 g de cuivre, avec un ventilateur de 60 mm qui tourne tout doucement, et l'ASIC a perdu une bonne dizaine de degrés. Seul regret : le Nerdaxe, lui, reste avec son refroidissement d'origine.
Olivier Verified purchase
08.10.2026
Easy swap, apart from getting the Copper Pro to sit perfectly flat, since it likes to shift a little to one side until it is fixed. After a month at 625 MHz and 1150 mV the ASIC reads 52 °C in a 21 °C room with the fan on auto. One thing to check before ordering: the Gamma no longer fits the small printed case I had, so now it lives open on a shelf.
Wim Verified purchase
07.10.2026
Zwei Gammas laufen bei mir im Keller nebeneinander, beide auf 575 MHz und 1150 mV, und nur einer hat den AXP60 bekommen. Das macht den Vergleich einfach: Der mit Serienkühler liegt bei 57 °C, der umgebaute bei 46 °C, und das bei konstant etwa 19 °C im Raum. Bei den Spannungswandlern tut sich dagegen kaum etwas, deshalb sitzen auf beiden inzwischen die kleinen Kupferkühlkörper. Hörbar ist der Unterschied auch, den umgebauten muss man neben seinem Nachbarn schon suchen. Die Montage selbst war unspektakulär, das Ausrichten klappte bei mir sogar auf Anhieb. Kleiner Haken ist das Lüfterkabel: Es ist recht knapp bemessen und muss ziemlich straff zum Anschluss auf dem Board geführt werden, ein paar Zentimeter mehr hätten nicht geschadet. Am Ende habe ich es an der Platinenkante entlang verlegt, das reicht gerade so.
Norbert Verified purchase
07.10.2026
Beim Ausrichten wollte eine Stelle erst mal diskutieren, der Rest saß sofort. Seitdem ist der Chip zweistellig kühler, die Diskussion hat sich also gelohnt.
Mario Verified purchase
05.10.2026
Room at 22 °C, Gamma on AxeOS 2.15.3, five days of checking the dashboard far too often. With the stock cooler and factory settings my ASIC sat around 60 °C and the little 40 mm fan was spinning fast most of the day. Same settings with the AXP60 and the fan on auto: the chip stays at 48 °C while the fan just idles at the minimum speed I set, so the regulation has basically nothing to do! Of course I could not leave it like that. At 700 MHz and 1200 mV the ASIC now holds about 55 °C, VR around 68 °C, and the hashrate settled near 1.42 TH/s. The 60 mm fan also sounds totally different, a deep whisper instead of a mosquito. Next experiment: the little copper heatsinks on the VR, I am curious if they knock a few degrees off those 68.
Zuzana Verified purchase
Show all 21 reviews
