Bitaxe Gamma Copper Pro | 1.5 TH/s
Bitaxe Gamma with a solid copper heatsink and its own OSM-OS image: 1.5 TH/s out of the box
Item no.: 47076 · Manufacturer: Bitaxe.de · Series: Bitaxe
- BM1370 ASIC, around 1.5 TH/s out of the box
- AXP60 Copper Pro: 210 g copper, two heat pipes, 60 mm fan
- Around 22 W power draw
- Up to 2 TH/s possible with tuning
- Hashrate
- ~1,5 TH/s
- Efficiency
- ~15 J/TH
- Power draw
- ~22 W
plus shipping · −5% with Bitcoin: €170.05
In stock · ships within 24 h
Product information
Bitaxe Gamma Copper Pro: open-source Bitcoin miner with solid copper cooling

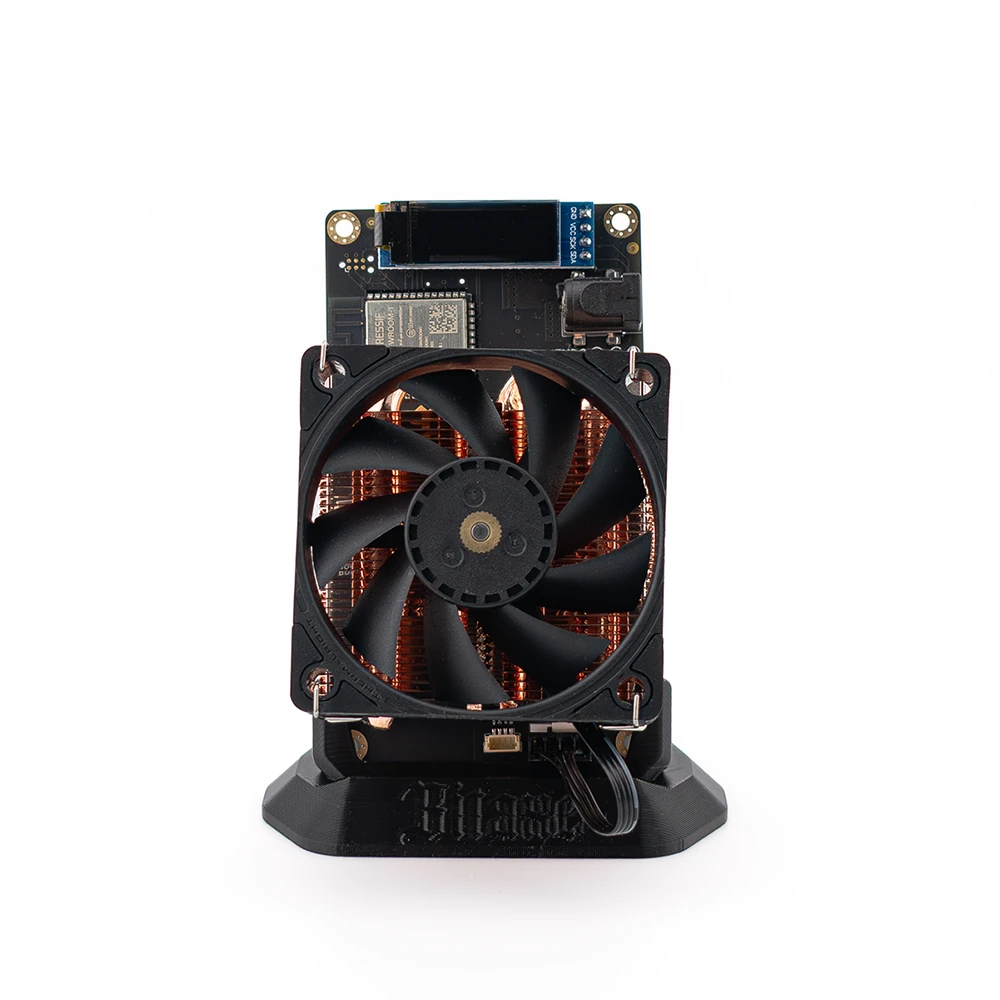

The Bitaxe Gamma Copper Pro is the turned-up edition of the Bitaxe Gamma: the same BM1370 ASIC, but shipped with its own OSM-OS image at 750 MHz instead of the stock clock. That yields around 1.5 TH/s at roughly 22 W, about 15 J/TH, plus a 0.91-inch OLED, AxeOS and 2.4 GHz Wi-Fi. The factory-fitted AXP60 Copper Pro cooler is what makes it possible: 210 g of solid copper, two heat pipes and a 60 mm PWM fan. Copper takes heat away faster and buffers it rather than leaving it sitting on the ASIC. Until October 2026 this miner was sold as the Bitaxe Copperzilla.
Day to day that means more hash rate at a calm temperature: the copper block sustains the higher clock at roughly 22 W without the fan constantly spinning up. And if you want to push further: with a capable power supply and good airflow, up to 2 TH/s are within reach; the overclocking guide shows how to do it safely.
That composure is exactly the point when solo mining: the device is meant to run month after month without summer heat or a cramped spot slowing it down. Every hash it submits is a ticket on the next block – and that block currently pays 3.125 BTC plus every transaction fee in it, credited straight to the address stored in your AxeOS. None of that is plannable and it is not an income model; the tickets cost no more than your miner’s electricity, and in between your miner confirms transactions and spreads the network hash rate across more shoulders.
Why the Gamma Copper Pro has more headroom than a standard Bitaxe
- Solid copper instead of a standard heatsink: copper moves heat away from the BM1370 faster and keeps the ASIC temperature steadier even after hours under load.
- Quieter at the same temperature: because the heatsink absorbs more heat, the 60 mm fan has to spin up less often to hold the same target.
- Room to raise the clock: anyone touching frequency and voltage in AxeOS needs thermal headroom first – that is what the heatsink provides.
- Otherwise unchanged: same firmware, same setup, same 5V/6A power supply as the entry model.
What the copper heatsink does – and what it does not
A better heatsink does not create hash rate. It makes sure the ASIC can hold the configured performance instead of throttling back as the temperature climbs. In a cool, airy room you will hardly see a difference to a well-placed standard device. In a warm attic, on a tight shelf or with a raised clock you notice it clearly.
Two things remain your job: clean airflow around the device and a stable power supply. When overclocking, the current demand rises before temperature becomes the problem – so the order is position, power supply, then clock.
All that copper makes the build heavier than a standard Bitaxe. On a solid surface with the stand that is irrelevant; on wobbly shelves or vertical mounts you should plan for it.
Up and running in minutes
Setup is no different from the other Bitaxe models: socket, 2.4 GHz Wi-Fi, browser. Have your pool details and Bitcoin address ready; the full walk-through is in the setup guide.
- 1
Connect power
Plug in the 5V/6A power supply. On first boot the Gamma Copper Pro opens its own Wi-Fi access point for configuration.
- 2
Join your home network
Connect to that network, select your own 2.4 GHz Wi-Fi and enter the password. The OLED then shows the IP address on your network.
- 3
Set pool and Bitcoin address
Open AxeOS, enter pool, port, worker and your Bitcoin address, save and restart. After any reboot the miner reconnects with the stored settings.
Who the Bitaxe Gamma Copper Pro is for
For everyone planning the miner as a long-distance runner: around the clock in the homelab, in the office or in a room without air conditioning. For tinkerers who adjust frequency and voltage and need temperature headroom for it. And for anyone who simply wants the more solid piece of hardware on the desk, because they look at it every day.
The premium pays off less if your miner stands free in a cool room and runs at stock settings – then the Bitaxe Gamma does the same job. And if you are after more hash rate rather than better cooling, the route goes through more chips, not a bigger heatsink: the Bitaxe GT delivers around 2.15 TH/s at 43 W from two BM1370.
What you need to run it
Miner, 5V power supply, stand and quick start guide are included. You bring 2.4 GHz Wi-Fi, a socket, pool details and your Bitcoin address. No PC or Raspberry Pi needed – AxeOS runs on the device itself.
For the heatsink to work it needs air: standing free, nothing right in front of the fan, no closed cabinet. If the location cannot be changed, airflow usually helps more than another component.
Accessories and sensible upgrades
Thermally the Gamma Copper Pro is well equipped from the factory. Useful additions are more about noise and infrastructure:
- Noctua NF-A6x15: a quiet 5 V fan in the 60 mm format that matches the fan mount of the factory-fitted AXP60.
- Bitcoin nodes: the next step when your own hash rate and your own validation should come together.
Ready for your Gamma Copper Pro setup?
The Bitaxe Gamma Copper Pro is the right choice when your miner should not stand out but simply keep running: familiar BM1370 performance, open firmware, your own address – and a heatsink that takes the temperature question off your hands.
Bitaxe Gamma Copper Pro compared to similar miners
| Model | Hashrate | Power | Efficiency | Price |
|---|---|---|---|---|
| Sovereign Stack V1 | ~1,3 TH/s | ~15 W | ~15 J/TH | €1,099.00 |
| Bitaxe Gamma Copper Pro (this page) | ~1,5 TH/s | ~22 W | ~15 J/TH | €179.00 |
| Bitaxe GT | 2,15 TH/s | 43 W | ~20 J/TH | €229.00 |
All values are guide figures. Compare all miners, calculate power cost.
Frequently asked questions about the Bitaxe Gamma Copper Pro
What is the difference between the Bitaxe Gamma Copper Pro and the Bitaxe Gamma?
Does the copper heatsink add hash rate?
How much electricity does the Bitaxe Gamma Copper Pro use?
How loud is the Bitaxe Gamma Copper Pro?
Is the Gamma Copper Pro heavier than a normal Bitaxe?
Is more than 1.5 TH/s guaranteed?
Is the Gamma Copper Pro suitable for 24/7 operation?
Do I need a stronger power supply for the Gamma Copper Pro?
What is the difference between the Gamma Copper Pro and the Bitaxe GT?
Can I solo mine with the Gamma Copper Pro?
Does the Gamma Copper Pro work on 5 GHz Wi-Fi?
What is in the box?
Why buy from Bitaxe.de?
Free shipping from 200 €
Free shipping to almost every EU country from 200 €, shipping to the EU and Switzerland with UPS and a tracking link. Items in stock leave within 24 hours, with no customs surprises inside the EU.
Truly open source
Bitaxe, Nerdaxe, NerdQaxe & co. are open hardware running open firmware (AxeOS or NerdOS): you set pool, clock and voltage yourself. No cloud account, no vendor lock-in, no black box.
CE, warranty & returns
Every product carries the CE marking. Plus statutory warranty and a 14-day right of withdrawal for a safe order. If something is not right, we find a solution with you, person to person.
Direct support
Questions about setup, pool, firmware or your order? By email or Telegram you get help from someone who runs these devices themselves, in English or German, beginners welcome.
Customer reviews
4.9 / 5 · 43 reviews from customers who bought this product from us.
alles Toppi.
Unsere Bestellung entspricht unseren Vorstellungen.
verliebt! der kupferblock macht im regal richtig was her, und mit den werkseitigen 750 mhz bleibt der chip so entspannt, dass ich bald selbst am takt drehen will.
Dreaded the setup as a complete novice, yet joining the miner's own Wi-Fi and picking my network took minutes. Default settings all summer, and apparently the copper leaves room to push it further one day.
Eigentlich sollte er ins Arbeitszimmer, gelandet ist er auf der Kommode im Schlafzimmer, weil er dort schlicht nicht stört. Der Lüfter dreht so gemütlich, dass ich ihn abends garnicht wahrnehme, obwohl ich den Takt seit Juli ein Stück angehoben habe. Sorgen hatte ich eher wegen den Display, aber das winzige Ding fällt nachts kaum auf. Für ein Gerät im Schlafzimmer hatte ich mir das deutlich schwieriger vorgestellt.
Lieferung schnell, tut was es soll. Habe nix zu bemängeln
